What is Anchoriv?

Anchoriv is the new substructure system that enables you to anchor your cladding to the wall of the building. Anchoriv originates from the search for simple and innovative solutions that enable to simplify as much as possible the installation time of any kind of cladding.

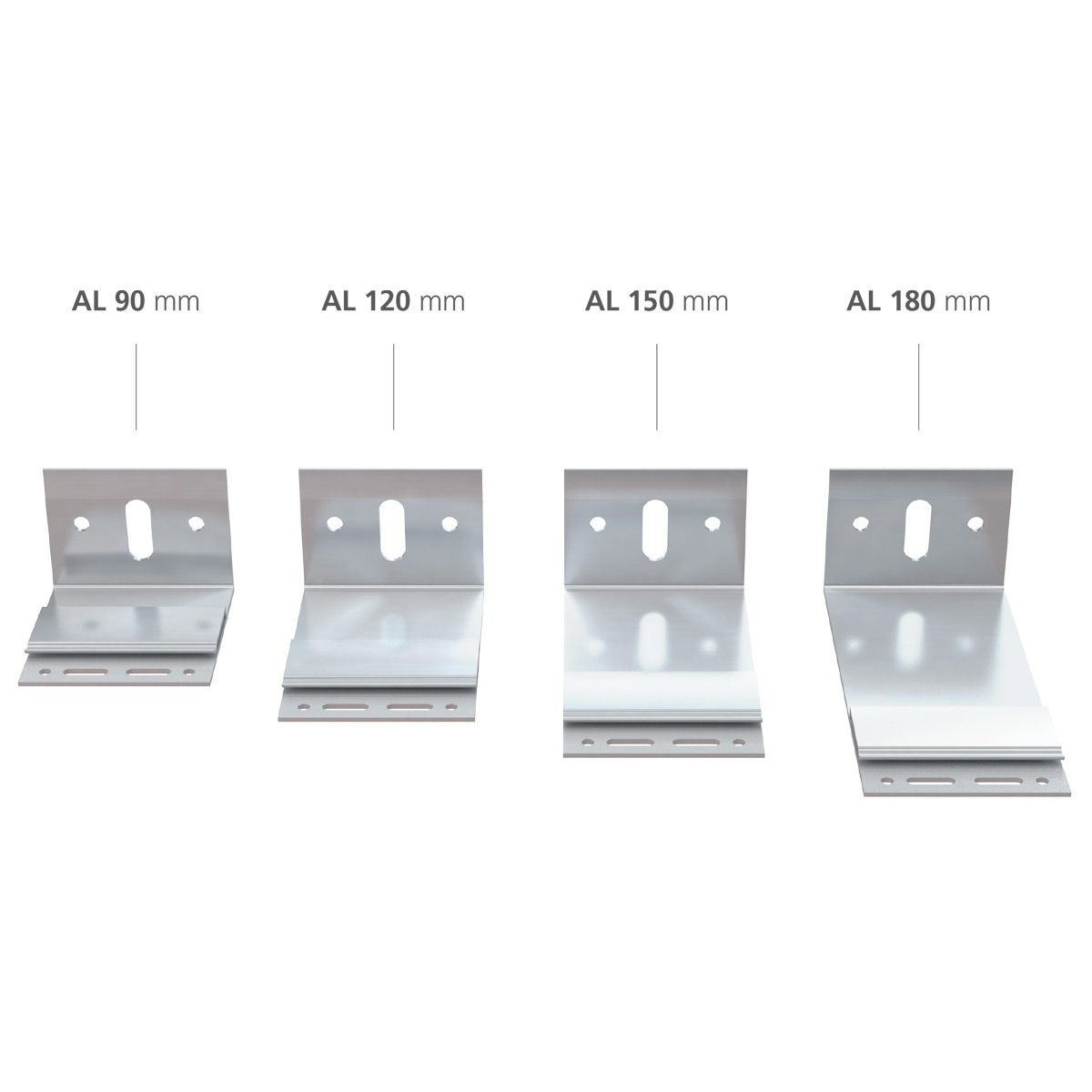

AL Anchoriv standard brackets are manufactured in standard lengths:
90 – 120 – 150 – 180 mm. Brackets have been developed to be installed on concrete, steel or wood. The extreme flexibility and simplicity during the installation, satisfies every architectural need.

AL standard brackets

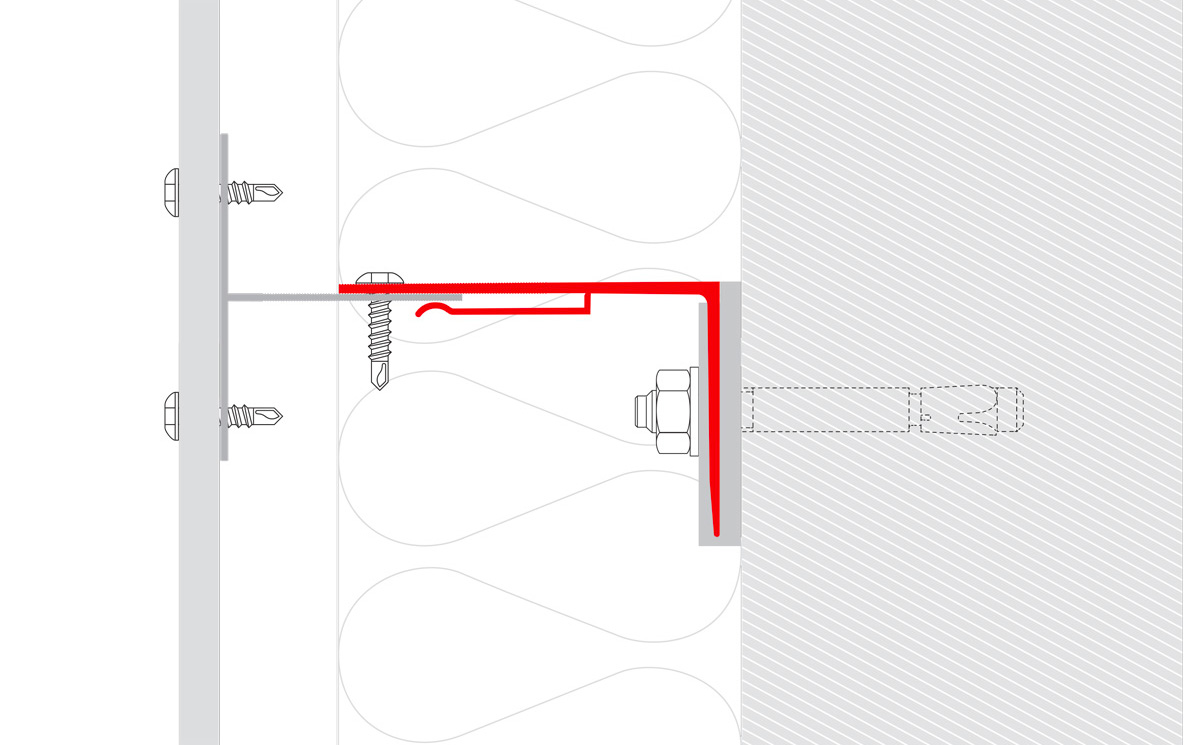

90 mm bracket

“L” shape bracket produced by aluminium extrusion, 90 mm height. Element ready to be combined with Thermostop.

Technical sheet

120 mm bracket

“L” shape bracket produced by aluminium extrusion, 120 mm height. Element ready to be combined with Thermostop.

Technical sheet

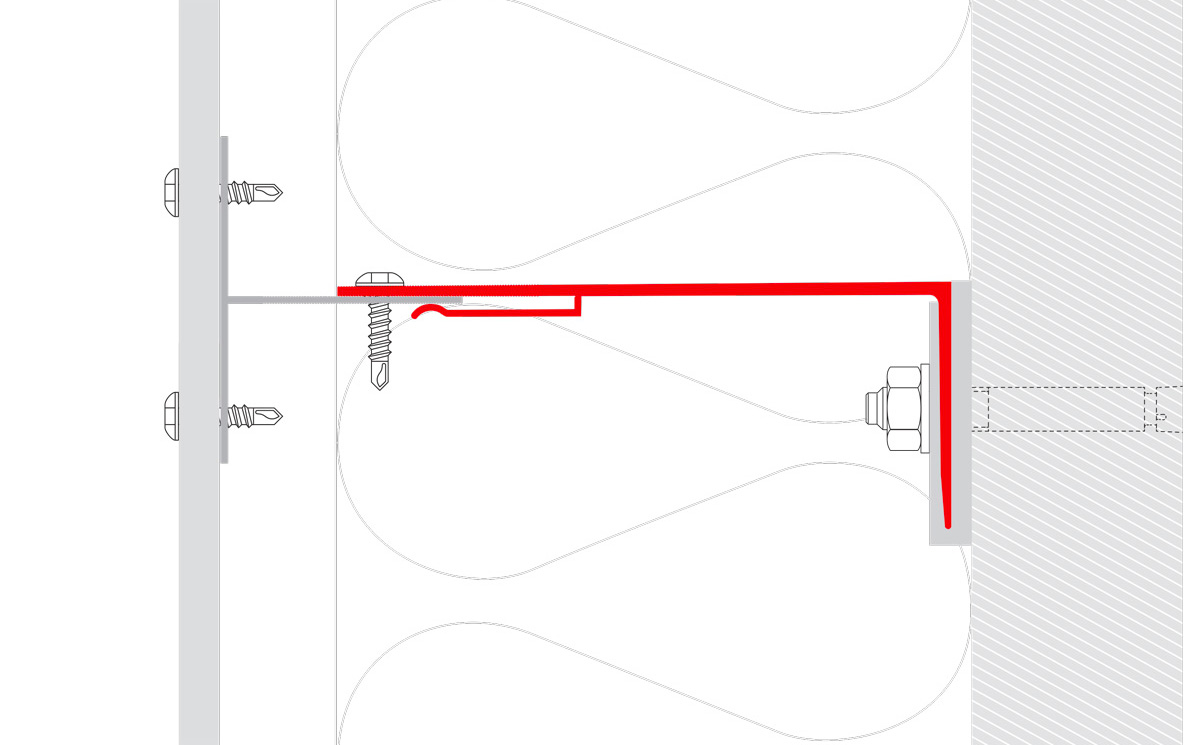

150 mm bracket

“L” shape bracket produced by aluminium extrusion, 150 mm height. Element ready to be combined with Thermostop.

Technical sheet

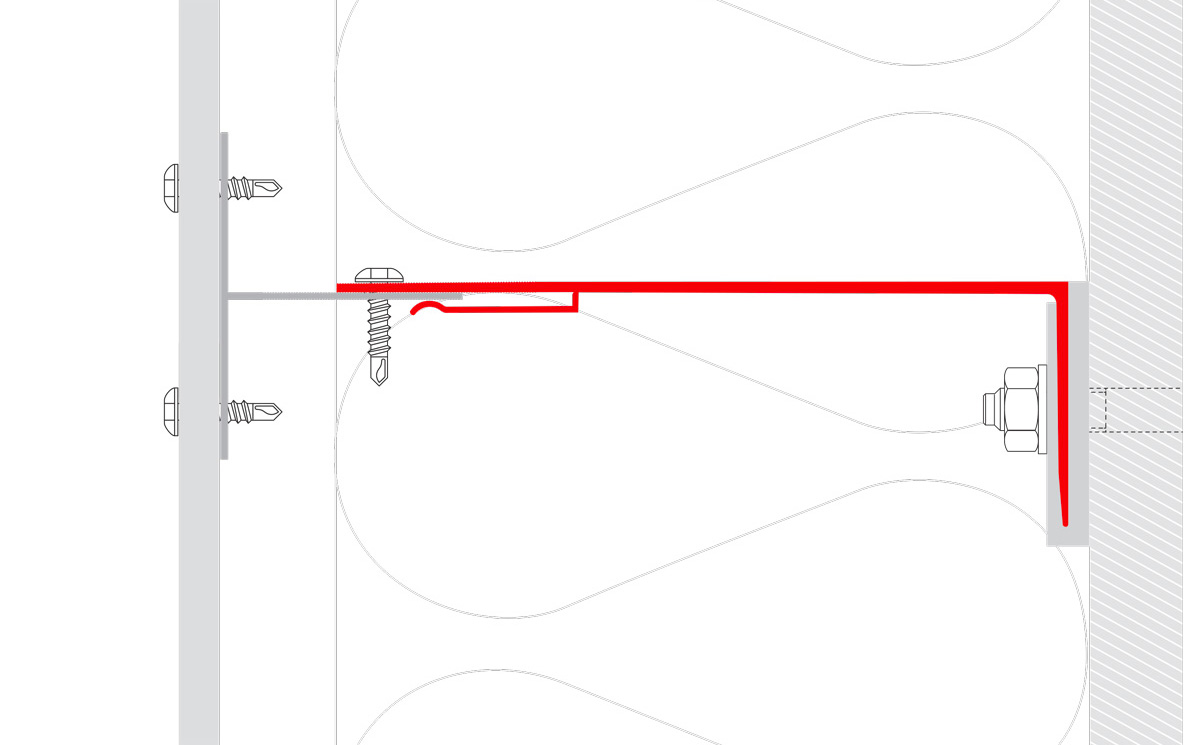

180 mm bracket

“L” shape bracket produced by aluminium extrusion, 180 mm height. Element ready to be combined with Thermostop.

Technical sheet

Double bracket assembled

Bracket assembled

Anchoriv brackets shape allows to assembly two elements in a single one, reaching higher traction/resistance values.

ALUMINIUM EXTRUDED RAILS

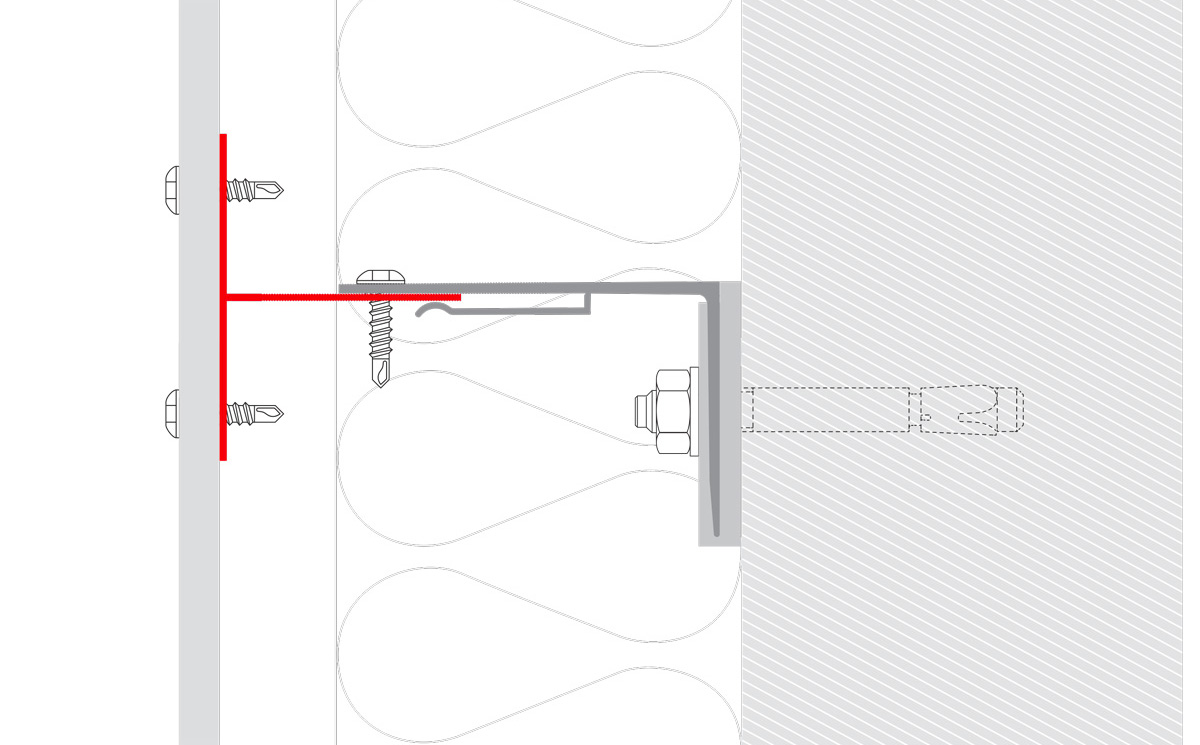

T1 profile

Rails are the connection between brackets and the external caldding; after adjustment for line and level, are fixed to brackets by using right connection systems.

Technical sheet

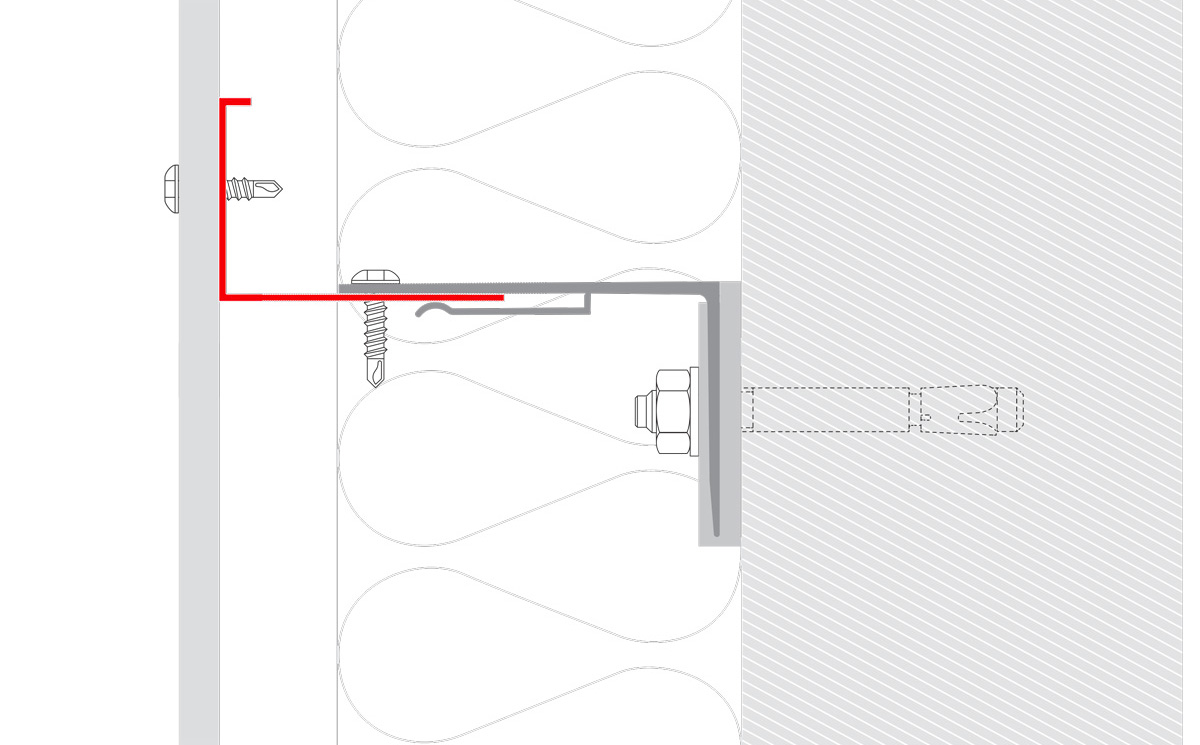

L1 profile

Rails are the connection between brackets and the external caldding; after adjustment for line and level, are fixed to brackets by using right connection systems.

Technical sheet

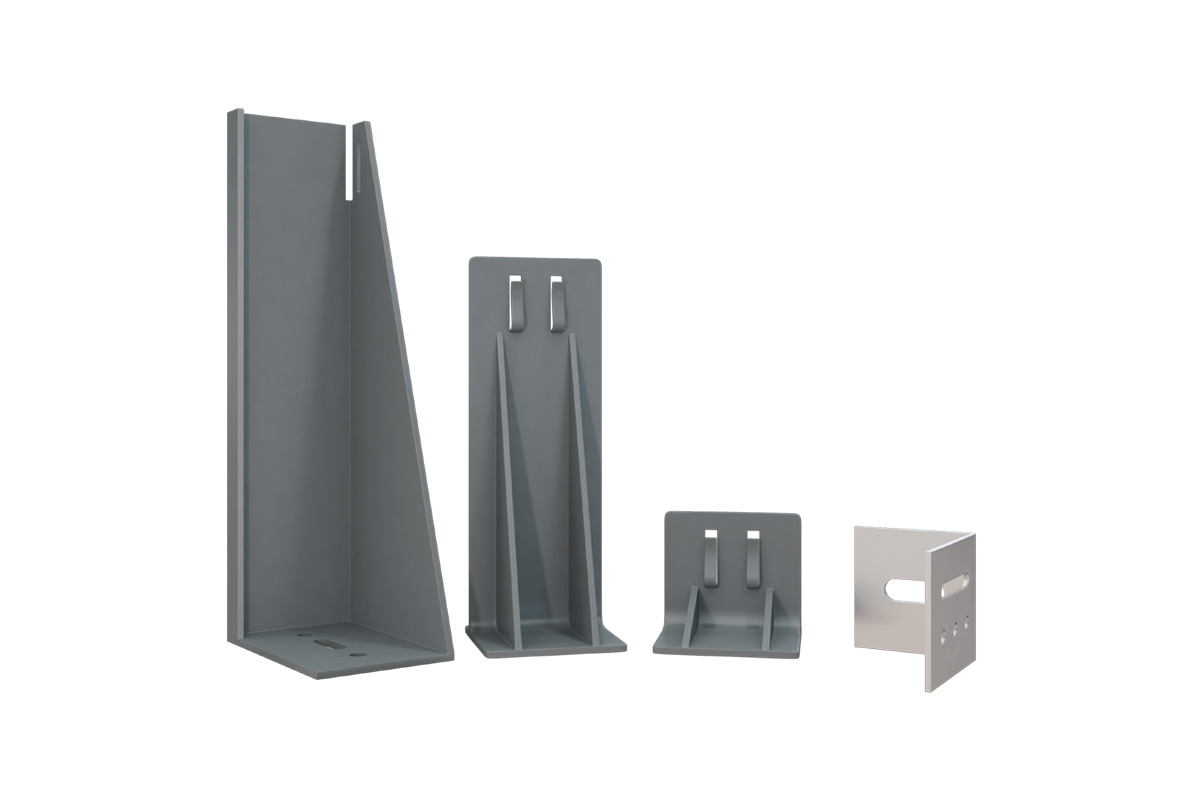

Special Brackets

Special Brackets

Our technical office is at your disposal to study and develop new solutions in terms of geometries and material. We can provide stainless steel solutions as well as polymer efficient solution to improve cladding system performances.

Are you interested in a sample?

Please do not hesitate to contact us if you have any further question.
